A simple mono stacked bar build with React

by React

mono-stacked-bar

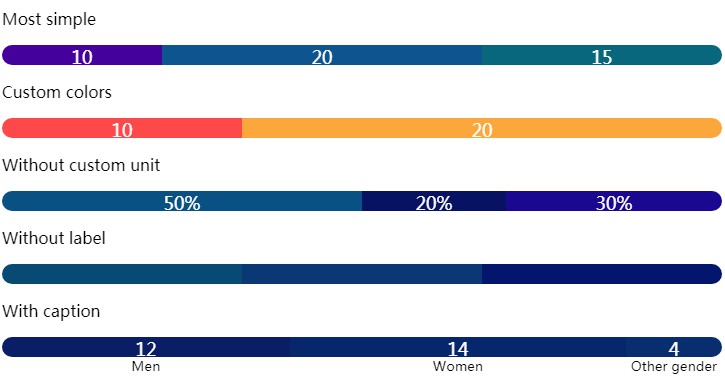

A simple mono stacked bar in React.

View Demo Download Source

Install

npm install --save mono-stacked-bar
# or using yarn
yarn add mono-stacked-bar

Do not forget to include the css file !

  • Using ES6 with a module bundler like Webpack

    import "mono-stacked-bar/dist/index.css"

  • With good old reliable HTML tag

    <head>
      <link href="node_modules/mono-stacked-bar/dist/index.css" rel="stylesheet" />
    </head>

Usage

import React from "react"
import MonoStackedBar from "mono-stacked-bar"
import "mono-stacked-bar/dist/index.css"

const App = () => {
  return <MonoStackedBar data={[10, 20, 15]} />
}

Required props

The data "props" can have two forms.

Note : caption are shown underneath the bar.

props type properties sample
data number[] [10, 20, 25]
data BarData[] value: number (required)color: string (optional)caption: string (optional) [{ value: 10, color: "red", caption: "Some text" }, { value: 15, color: "orange" }]

Optional props

props type default description
color string blue A default set of colors picked thanks to the randomcolor package
luminosity "bright" or "light" or "dark" dark Default luminosity applied to randomcolor
displayLabels boolean true Should data values be displayed inside bar sections
unit string "" The unit to be displayed after labels (%, $, etc)
width number (px) Max width of the stacked bar (full-width by default)
height number (px) 20 The height of the stacked bar
radius number (px) 10 The border radius applied to the edges
