Draw statistic charts: Line, Bar, Area, Pie, Donut, Radar, etc, like an expert

Yet another React Native chart library, but provide more choices of chart types and easy usage. Using react-native-svg as the final renderer.

Features

  • πŸš€ Follow the idea from β€œThe Grammar of Graphics”.
  • 🎨 Support rich chart types.
  • ✨ Support basic animation, tooltip and guidelines.
  • πŸ“– Well defined APIs.
Geometry Point Line Area Interval
Chart Type Scatter Chart Line Chart Radar Chart Area Chart Bar Chart Interval Chart Pie Chart Rose Chart Donut Chart
Supported βœ… βœ… βœ… βœ… βœ… βœ… βœ… βœ… βœ…
Chart Components Legend Tooltip GuidePoint GuideLine Text Annotation Image Annotation Range Selection Slider
Supported ❌ βœ… βœ… βœ… ❌ ❌ ❌ ❌

Installation

First install react-native-svg based on installation guide.

yarn add react-native-statistic-charts

Quick Start

import React from 'react'
// import chart componennt
import { Chart, Line, Axis, Tooltip } from 'react-native-statistic-charts'

// init chart data
const data = [
  {
    date: '2017-06-05',
    value: 116,
  },
  {
    date: '2017-06-06',
    value: 129,
  },
  {
    date: '2017-06-07',
    value: 135,
  },
]

export default () => (
  // render
  <Chart data={data} style={{ width: 500, height: 250, padding: [10, 20, 0, 20] }}>
    <Axis field="date" lineStyle={{ strokeColor: '#aaa' }} tickLineStyle={{ strokeColor: '#ccc' }} />
    <Axis field="value" lineStyle={{ strokeWidth: 0 }} tickLineStyle={{ strokeWidth: 0 }} grid />
    <Line position="date*value" size={2} />
    <Tooltip
      crosshair
      crosshairsType="x"
      crosshairStyle={{ strokeColor: 'orange', strokeWidth: 2, strokeStyle: 'solid' }}
      sticky
    />
  </Chart>
)

Examples

Line Chart

import React from 'react'
import { View, Dimensions } from 'react-native'
import { Chart, Axis, Tooltip, Line, ScaleType } from 'react-native-statistic-charts'

// const data = { date: sring, value: number }[]

export default () => (
  <View>
    <Chart
      data={data}
      scale={{
        date: { type: ScaleType.TimeCategory },
        value: { type: ScaleType.Linear, tickCount: 6 },
      }}
    >
      <Axis field="date" />
      <Axis field="value" lineStyle={{ strokeWidth: 0 }} tickLineStyle={{ strokeWidth: 0 }} grid />
      <Line position="date*value" />
      <Tooltip
        crosshair
        crosshairsType="x"
        crosshairStyle={{ strokeColor: 'orange', strokeWidth: 2, strokeStyle: 'solid' }}
        sticky
      />
    </Chart>
  </View>
)

Bar Chart

import React from 'react'
import { View, Dimensions } from 'react-native'
import { Chart, Axis, Tooltip, Interval, ScaleType } from 'react-native-statistic-charts'

// const data = { date: sring, value: number }[]

export default () => (
  <View>
    <Chart
      data={data}
    >
      <Axis field="date" lineStyle={{ strokeColor: '#aaa' }} tickLineStyle={{ strokeWidth: 0 }} tickCount={8} />
      <Axis
        field="value"
        lineStyle={{ strokeWidth: 0 }}
        tickLineStyle={{ strokeWidth: 0 }}
        grid
        gridLineStyle={{ strokeStyle: 'dashed', dashedStyle: [2] }}
        labelStyle={{ offset: 6 }}
      />
      <Interval
        position="date*value"
        size={10}
        groupBy="country"
        color={{ field: 'value', value: record => (record['value'] > 0 ? 'green' : 'red') }}
      />
      <Tooltip
        crosshair
        crosshairsType="x"
        crosshairStyle={{ strokeColor: 'orange', strokeWidth: 1, strokeStyle: 'solid' }}
        sticky
        label={false}
      />
    </Chart>
  </View>
)

Area Chart

import React from 'react'
import { View, Dimensions } from 'react-native'
import { Chart, Axis, Tooltip, Area, ScaleType } from 'react-native-statistic-charts'

// const data = { date: sring, value: number }[]

export default () => (
  <Chart
    data={this.data}
    scale={{ date: { type: ScaleType.TimeCategory } }}
  >
    <Axis
      field="date"
      tickCount={3}
      lineStyle={{ strokeColor: '#aaa' }}
      tickLineStyle={{ strokeColor: '#ccc' }}
    />
    <Axis
      field="value"
      grid
      lineStyle={{ strokeWidth: 0 }}
      tickLineStyle={{ strokeWidth: 0 }}
      gridLineStyle={{ strokeStyle: 'dashed', dashedStyle: [2] }}
    />
    <Line position="date*value" color={{ value: 'orange' }} />
    <Area
      position="date*value"
      color='orange'
      style={{ fill: 'linear-gradient(90deg, orange 0%, #FFFFFF 100%)' }}
    />
    <Tooltip
      crosshair
      crosshairsType="x"
      crosshairStyle={{ strokeColor: this.state.color, strokeWidth: 1, strokeStyle: 'solid' }}
      sticky
    />
  </Chart>
)

Pie/Donut Chart

import React from 'react'
import { View, Dimensions } from 'react-native'
import { Chart, Axis, Tooltip, Interval, ScaleType } from 'react-native-statistic-charts'

// const data = { name: sring, percent: number, a: '1' }[]

export default () => (
  <Chart
    data={data}
    coord={{ transposed: true, type: 'polar', radius: 1, innerRadius: 0.55 }}
  >
    <Interval
      position="a*percent"
      adjust="stack"
      groupBy="name"
      color={{
        value: [
          '#EDA500',
          '#F97B0D',
          '#EE4D2D',
          '#BF3D39',
          '#803F62',
          '#40428A',
          '#0046AB',
          '#0079A5',
          '#26AA99',
          '#7EA84D',
        ],
      }}
      itemStyle={{ borderWidth: 3, borderColor: '#fff' }}
    />
  </Chart>
)

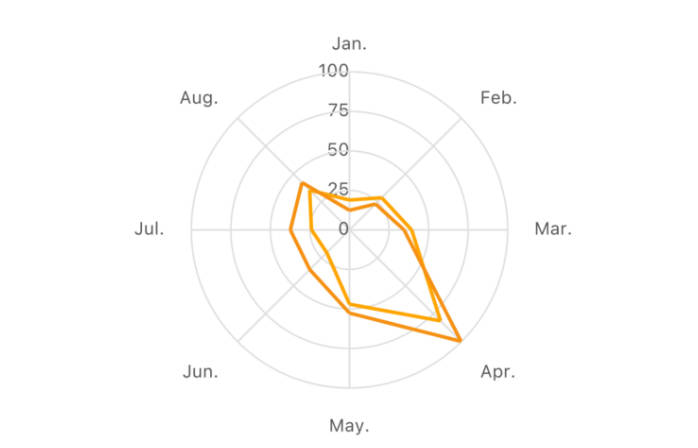

Radar Chart

import React from 'react'
import { View, Dimensions } from 'react-native'
import { Chart, Axis, Tooltip, Line, ScaleType } from 'react-native-statistic-charts'

// const data = { date: sring, value: number }[]

export default () => (
  <Chart
    data={this.data}
    coord={{ type: 'polar' }}
    scale={{ date: { type: ScaleType.TimeCategory, range: [0, 14 / 16] } }}
  >
    <Axis
      tickCount={8}
      field="date"
      lineStyle={{ strokeColor: '#aaa' }}
      tickLineStyle={{ strokeColor: '#ccc' }}
      labelStyle={{ offset: 10 }}
      grid
    />
    <Axis field="value" lineStyle={{ strokeColor: '#aaa' }} tickLineStyle={{ strokeColor: '#ccc' }} grid />
    <Line position="date*value" size={2} groupBy="name" />
    <Tooltip
      crosshair
      crosshairsType="x"
      crosshairStyle={{ strokeColor: 'orange', strokeWidth: 2, strokeStyle: 'solid' }}
      sticky
    />
  </Chart>
)

License

MIT
